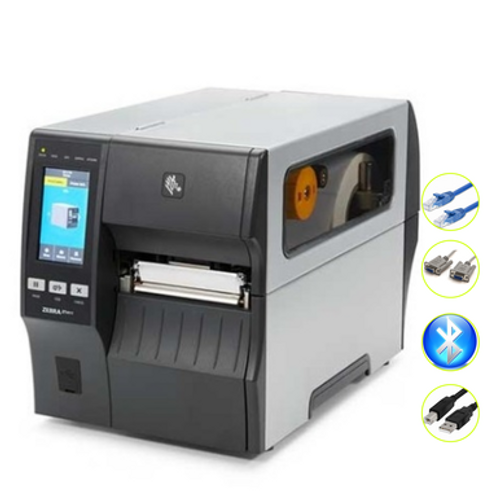

Zebra ZT411 Midrange Industrial Label Printer - 4", 203 DPI, Ethernet/Serial/BT/USB

Designed to be reliable, fast, and easy-to-use for medium and high-volume printing needs, the Zebra ZT411 is a sturdy midrange industrial-grade label printer. Featuring both direct thermal and thermal transfer printing technologies, this printer is built with a strong all-metal frame to withstand demanding environments. With a 4.3-inch full-colour touch display and seamless integration options, it empowers Australian businesses with turnkey POS hardware solutions for retail, transportation, manufacturing, and logistics.

Key Features

• Dual printing technologies: Direct Thermal and Thermal Transfer.
• 4.3-inch full-colour touch display with an intuitive menu and LED status indicators.
• Comprehensive connectivity: USB 2.0, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, and Dual USB Host.
• High-speed performance with maximum printing speeds up to 356 mm per second (14 ips).
• Robust all-metal frame featuring a bi-fold media door and side-loading print mechanism.
• Tool-less printhead and platen replacement for easy maintenance.
• Powered by Zebra Link-OS software tools for customized print solutions and easy management.

Benefits

* Versatile Output: Switch effortlessly between short-term monochrome direct printing and durable, multicoloured thermal transfer printing.

* Seamless Integration: Easily connects with your existing POS hardware and software ecosystems using multiple interface options.

* Uninterrupted Operations: Built for large volume printing with 256 MB RAM, 512 MB Flash memory, and field-upgradeable capabilities.

* Customizable Media Handling: Supports continuous, die-cut, notch, and black mark media to fully customize the look and feel of your labels.

Specifications

• Print Resolution: 203 dpi, 300 dpi, 600 dpi
• Maximum Print Speed: 356 mm per second (14 inches per second)
• Print Width: 104 mm
• Print Length: 3810 mm (at 203 dpi), 2450 mm (at 300 dpi)
• Media Thickness: 0.058 mm to 0.25 mm
• Maximum Label and Liner Width: 25.4 mm to 114 mm
• Maximum Label Length: 450 mm
• Maximum Roll Diameter: 203 mm O.D., 25 mm I.D. core
• Dimensions: 495 mm (L) x 269 mm (W) x 324 mm (H)
• Weight: 16.33 kgs (36 lb)
• Memory: 256 MB RAM, 512 MB Flash
• RFID Support: UHF EPC Gen 2 V2, ISO/IEC 18000-63, RAIN RFID protocols
• Barcode Symbologies: Linear Barcodes, 2D Barcodes
• Compliance: ENERGY STAR qualified

What's in the Box

• Zebra ZT411 Industrial Label Printer
• USB Cable
• User Manual

Application Use Cases

* Retail & POS Systems: Print pricing tags, promotional labels, and return receipts quickly to keep checkout lines moving and inventory accurately tracked.

* Logistics & Warehousing: Generate durable shipping labels, routing tags, and pallet barcodes that withstand transit and environmental wear.

* Manufacturing: Create compliance labels and work-in-process tags using thermal transfer technology for long-lasting readability on the assembly line.

* Healthcare: Print precise specimen labels, pharmacy prescriptions, and patient ID wristbands ensuring high-resolution barcode scanning.

FAQs

1. What printing technologies does the Zebra ZT411 use?

The Zebra ZT411 utilizes both Direct Thermal and Thermal Transfer printing technologies, allowing you to choose between short-term monochrome prints or durable, long-lasting labels.

2. Can I connect this printer to my existing POS system?

Yes, the ZT411 offers seamless integration with POS systems via USB 2.0, RS-232 Serial, 10/100 Ethernet, and Bluetooth 4.1 connectivity.

3. What is the maximum print speed of the Zebra ZT411?

This midrange industrial printer can achieve maximum printing speeds of up to 356 mm per second (14 inches per second).

4. Does this printer support RFID encoding?

Yes, it supports tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63, and RAIN RFID protocols.

5. What types of media can I use with this label printer?

You can use continuous, die-cut, notch, and black mark media with a thickness ranging from 0.058 mm to 0.25 mm.

6. Is the printhead easy to replace?

Absolutely. The printer features a tool-less printhead and platen replacement system for quick and easy maintenance.

How to Use / Care Instructions

• Ensure compatibility with your POS software before finalizing integration.
• Utilize the side-loading print mechanism and bi-fold media door to easily load label rolls and ribbons.
• Regularly clean the printhead and platen roller with approved thermal printer cleaning wipes to maintain optimal print quality.
• Keep the printer in a well-ventilated area and utilize the tool-less replacement feature when changing the printhead to prevent damage.

The Zebra ZT411 Midrange Industrial Label Printer delivers reliable, high-speed performance for demanding POS hardware environments. Featuring direct thermal and thermal transfer capabilities, robust all-metal construction, and seamless integration via Ethernet, Bluetooth, and USB, this 203 DPI printer streamlines operations across retail, logistics, and manufacturing sectors.
