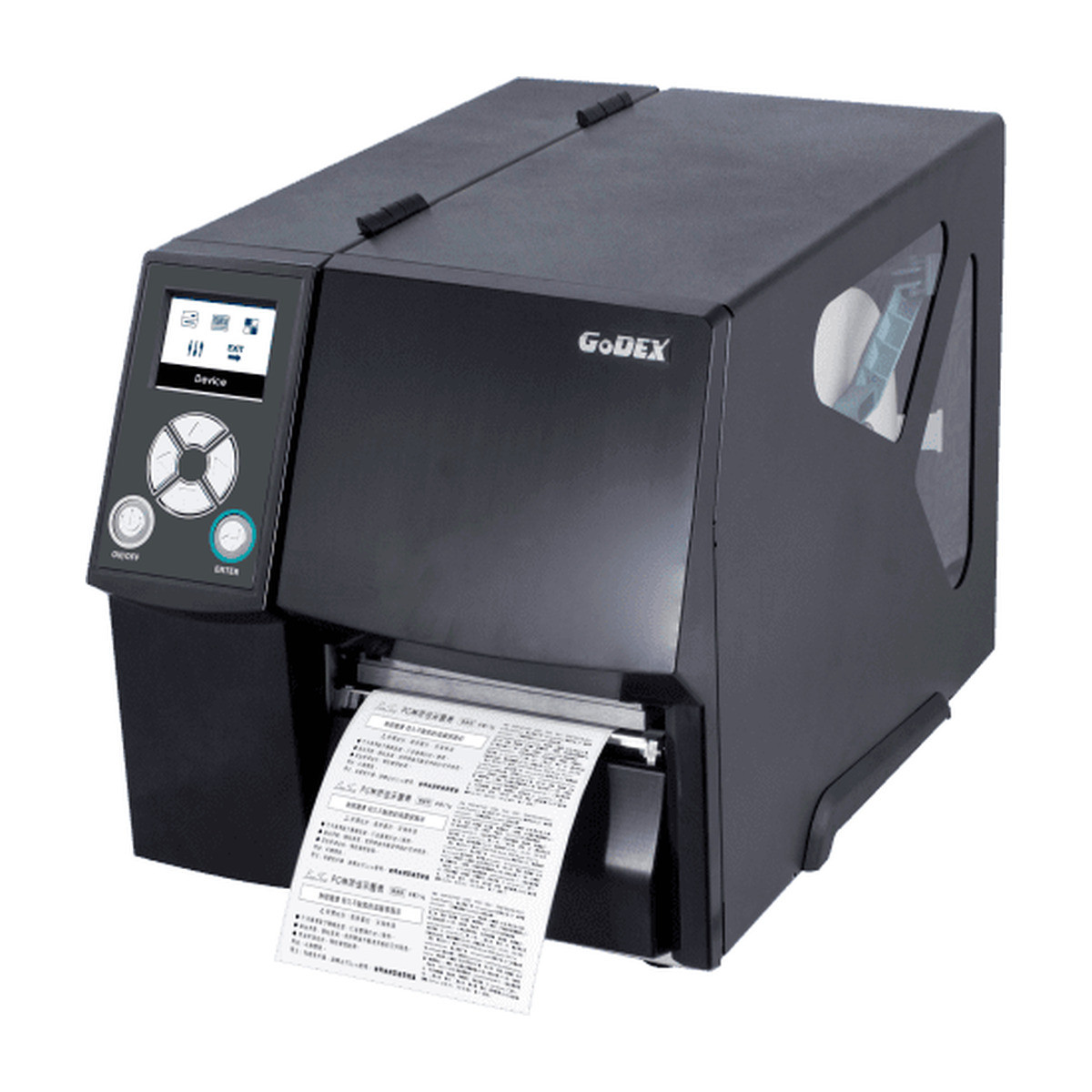

300DPI Compact Robust 4" DT/TT Industrial Label Printer
| Print Method | Thermal Transfer / Direct Thermal |
|---|---|
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | Up to 5 IPS (127mm/s) |
| Print Width | 4.16" (105.7 mm) |
| Interface | Serial port: RS-232 (DB-9) USB 2.0 Device port (Type B) USB |
| Warranty | 24 Months Return to Base, consumables excluded |
Innovating upon extensive customer feedback; GoDEX's most cost-effective and space-saving Industrial printers, the ZX400i+ series, integrates industrial utility with its high performance and exquisite design. The ZX400i+ series not only remains classic in its design, but also provides multiple outstanding features in this new model.
POS PLAZA supplies the GoDEX ZX430i+ in Australia with the Godex consumables, upgrade kits and spare parts that go with it, including print heads and platen rollers, so a worn part does not mean replacing the printer. It carries a 24 Months Return to Base manufacturer's warranty, which excludes consumable parts, meaning the thermal print head and the platen roller. For help choosing between resolutions, or between direct thermal and thermal transfer, call us on 1300 115 808.
Multiple connectivity options
Auto Calibration button
A full line of accessories

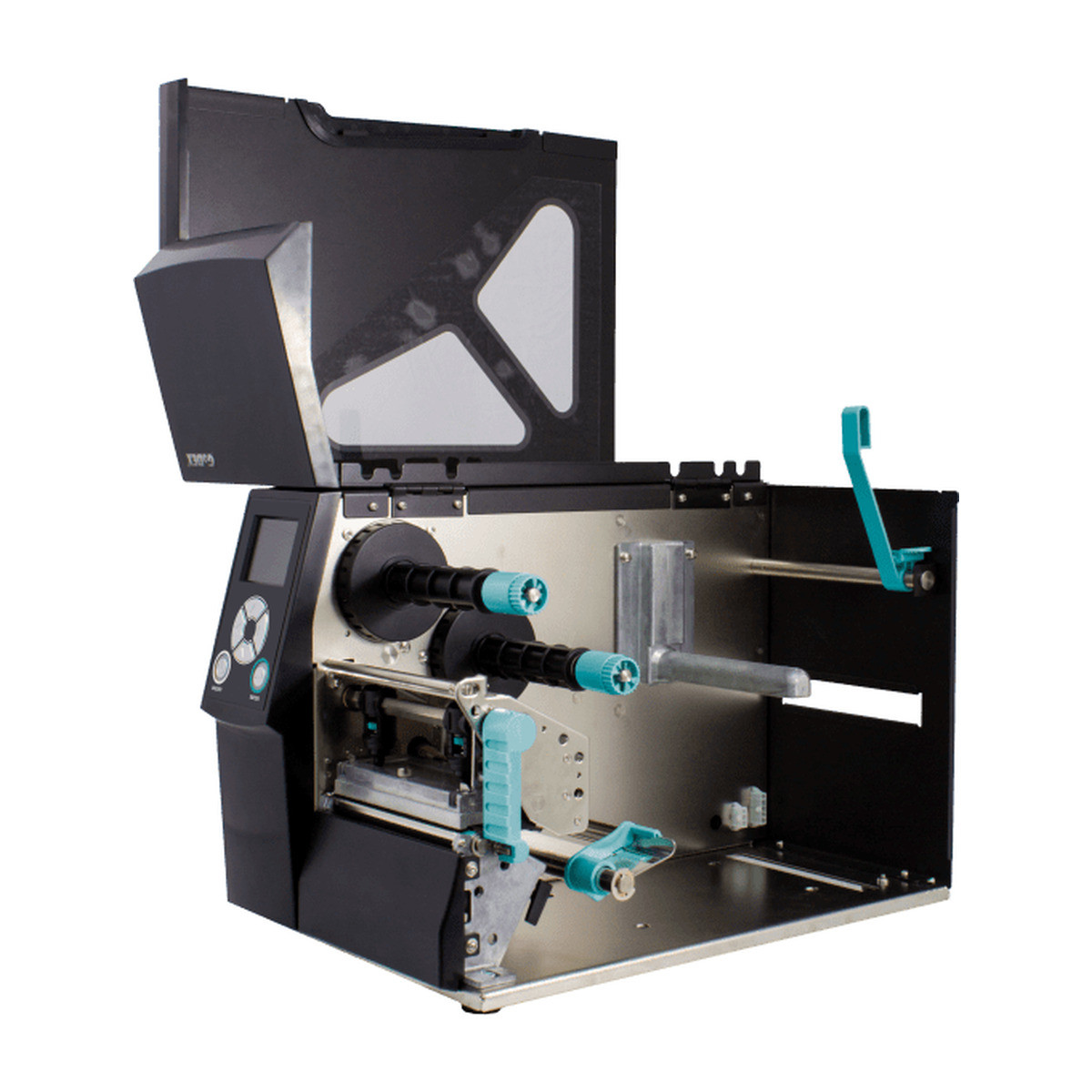

Easy ribbon/ media loading
Full-range adjustable label sensor
32-bit CPU that offers fast "first label out" throughput
Thermal transfer uses a ribbon, so the print does not fade with heat or light the way a direct thermal label does. That is what you want on asset tags, chemical labels and anything stored for months.
Direct thermal needs no ribbon at all, which makes it the cheaper way to run shipping labels, pick tickets and anything read within weeks rather than years.
With the standard Godex languages emulation it can usually take the label formats your current software already sends, which matters more than the hardware when you are replacing a printer.
| Print Method | Thermal Transfer / Direct Thermal |
|---|---|
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | Up to 5 IPS (127mm/s) |
| Print Width | 4.16" (105.7 mm) |
| Print Length | Min. 0.12" (3 mm)** to Max. 125.98" (3200 mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash: 128 MB SDRAM: 128 MB |
| Interface | Serial port: RS-232 (DB-9) USB 2.0 Device port (Type B) USB Host port (Type A) Ethernet 10/100 Mbps |
| Ribbon | Types : Wax, wax / resin, resin Length : Max. 1476' (450 m) Width : 1.18" Min. - 4.33" (30 mm - 110 mm) Max. Ribbon Roll Diameter : 3" (76.2 mm) Core Diameter : 1" (25.4 mm) |
| Media | Types : Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width : Min. 1" (25.4 mm) - Max. 4.64" (118 mm) Thickness : Min. 0.0024" (0.06 mm) - Max. 0.01" (0.25 mm) Label Roll Diameter : Max. 8" (203.2 mm) with 3" (76.2 mm) core Max. 6" (152.4 mm) with 1.5" (38.1 mm) core Max. 5" (127 mm) with 1" (25.4 mm) core Core Diameter : Min. 1 " (25.4 mm) - Max. 3" (76.2 mm) |
| Languages (auto switching) | EZPL, GEPL, GZPL, GDPL (Godex, Eltron, Zebra, and Datamax) |
| Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A and B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Download Fonts | Bitmap fonts: 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese(S-JIS), Korean (KS-X1001) 0°, 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions TTF fonts: TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Codepages | CODEPAGE 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode (UTF8, UTF16) |
| Barcodes | 1-D Bar codes: China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 and 5digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 and 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart, Random Weight and Pharmacode 2-D Bar codes: Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39, GS1 Composite, DotCode, Marco PDF 417 |
| RTC (Real Time Clock) | Standard |
| Control Panel | Color TFT LCD with navigation button Power on/standby button with green color LED backlight Calibration button at rear panel Control key : FEED / PAUSE / CANCEL with dual color LED Backlight: Ready (Green); Error (Red) |
| Options | Cutter (Dealer Install) Parallel port adaptor module (Centronic female 36-pin)(Dealer Install) BT (Dealer Installer) Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install) External label rewinder Label Dispenser (Dealer Install) External label unwinder |
This model is listed in its standard build. Godex offers peeler, cutter and wireless options across the range, and POS PLAZA stocks the Godex upgrade kits and spares separately. Call 1300 115 808 on 1300 115 808 if you need this printer supplied with an option fitted.
The print width in the specifications is the hard limit. Check your label stock against it, and check the core size your rolls are wound on, before the printer arrives.
This printer speaks the Godex languages. If you are replacing an existing printer, those emulations are usually what lets your current label formats keep working.
The label and ribbon cost outruns the printer cost quickly. Tell us what you are printing and we will quote the stock alongside the hardware.
Only in thermal transfer mode. This printer does both: direct thermal needs no ribbon and prints onto heat sensitive label stock, while thermal transfer uses a ribbon to lay ink onto the label. Direct thermal is cheaper to run and fades over months, thermal transfer costs more per label and lasts. Choose per job, the printer does not care.
Resolution is how many dots the head lays down per inch. 300 dpi (12 dots/mm) is the working figure for this model. Higher resolution matters when you are printing small text, fine logos or dense 2D barcodes onto small labels. For plain product and shipping labels the lower resolutions are usually sharper than they need to be already.
Godex rates it at Up to 5 IPS (127mm/s) with a maximum print width of 4.16" (105.7 mm). The width is the limit on the label itself: anything wider than that cannot be filled edge to edge, so measure your label stock against that figure before ordering.
As standard it offers Serial port: RS-232 (DB-9) USB 2.0 Device port (Type B) USB Host port (Type A) Ethernet 10/100 Mbps. Tell us how the printer will sit on your network when you order and we will confirm you have the right build.
Godex supplies its GoLabel design software at no extra cost, which is enough to lay out and print labels without buying a third party package. If you already use a labelling or ERP system you will more likely drive the printer from that instead, through the language emulations listed in the specifications.
A 24 Months Return to Base manufacturer's warranty. Return to base means a faulty unit comes back to us for assessment and repair or replacement rather than an engineer attending site. Consumable parts are excluded, which on a thermal printer means the thermal print head and the platen roller. Both are wear items with a working life measured in printed metres rather than in years, so they are replaced on a service schedule rather than claimed, and POS PLAZA stocks both for this range.
Call us on 1300 115 808. Choosing between resolutions and between direct thermal and thermal transfer is much easier against a printed sample of your own artwork than against a specification sheet.
