GoDEX DT230+ Label Printer
Godex
-
SKU:
GX-DT230+

- Warranty:
- 24 Months Return to Base

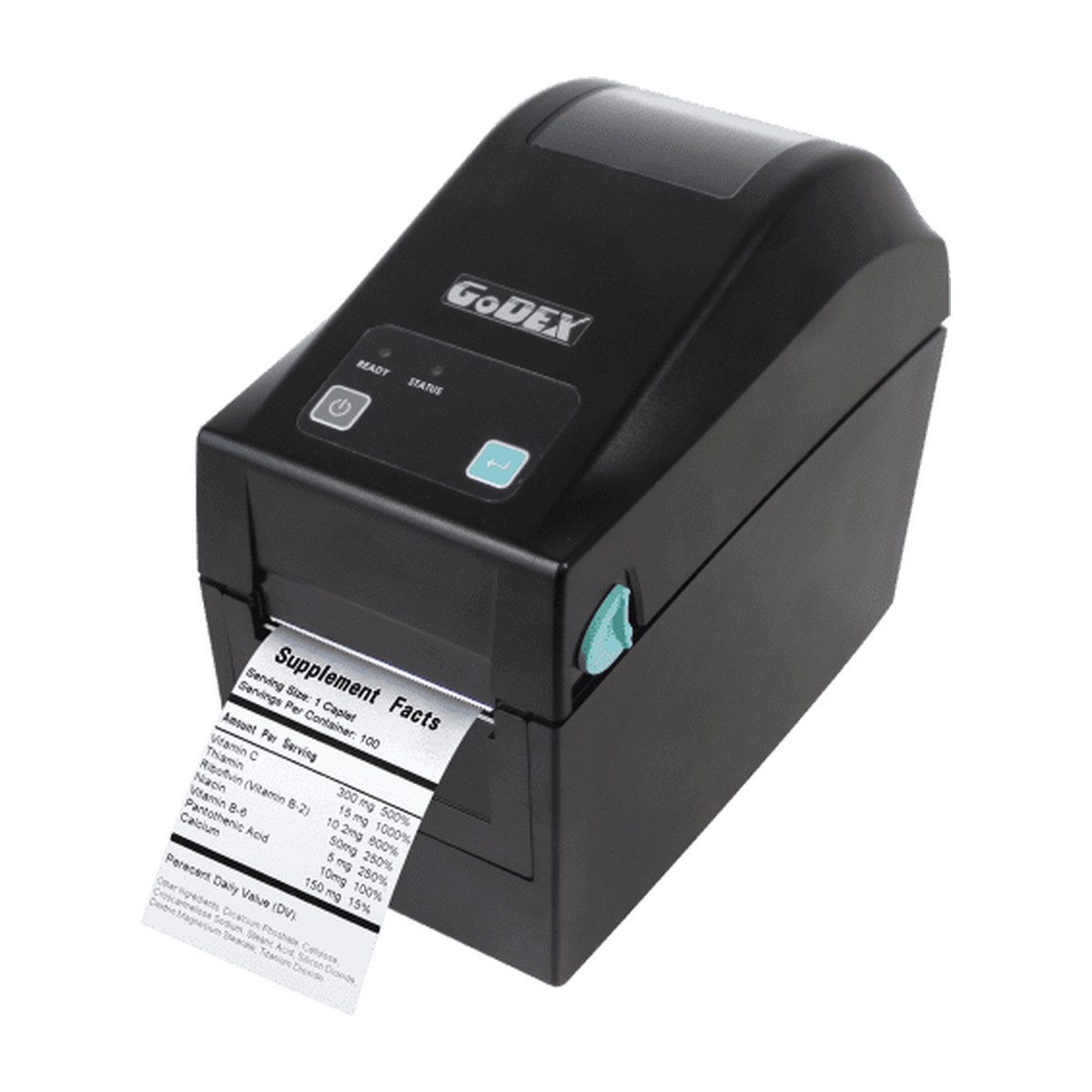

GoDEX DT230+ Label Printer
Compact 2" (60mm) direct thermal 300DPI desktop label printer
- 300dpi
- Direct thermal
- 127 mm / sec
- 56.9mm (2.24")
- Ethernet
- 24 Months Return to Base
At a glance
| Print Method | Direct Thermal |
|---|---|
| Resolution | 300dpi (12 dots/mm) |
| Print Speed | 127 mm / sec (5 ips) |
| Print Width | 56.9mm (2.24") |
| Interface | USB 2.0 (B-Type) Serial port: RS-232 (DB-9) Ethernet port (R |
| Warranty | 24 Months Return to Base, consumables excluded |
The DT230+ boasts an ingenious design that brings several functions into one platform. It supports 300dpi printing resolution. A full line of optional accessories is available (Bluetooth, Wifi, cutter module, label dispenser). All your needs can be satisfied with this series.
POS PLAZA supplies the GoDEX DT230+ in Australia with the Godex consumables, upgrade kits and spare parts that go with it, including print heads and platen rollers, so a worn part does not mean replacing the printer. It carries a 24 Months Return to Base manufacturer's warranty, which excludes consumable parts, meaning the thermal print head and the platen roller. For help choosing between resolutions, or between direct thermal and thermal transfer, call us on 1300 115 808.
Why choose the GoDEX DT230+
Supports 300 dpi printing
Supports 300 dpi printing resolution
Small footprint with a
Small footprint with a wall-mountable design for space optimization
The innovative easy-to-use auto-calibration
The innovative easy-to-use auto-calibration button facilitates media detection and positioning
Adjustable TPH print line
Adjustable TPH print line to optimize printability
Multiple connection interfaces for
Multiple connection interfaces for multiple applications
Optional wireless connectivity
Bluetooth or Wi-Fi module
Where it fits
Short life labels
Direct thermal needs no ribbon at all, which makes it the cheaper way to run shipping labels, pick tickets and anything read within weeks rather than years.
Fitting an existing system
With the standard Godex languages emulation it can usually take the label formats your current software already sends, which matters more than the hardware when you are replacing a printer.
Full specifications
| Print Method | Direct Thermal |
|---|---|
| Resolution | 300dpi (12 dots/mm) |
| Print Speed | 127 mm / sec (5 ips) |
| Print Width | 56.9mm (2.24") |
| Print Length | Min. 0.16" (4 mm)** - Max . 125.98" (3200 mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash: 128 MB Flash and SDRAM: 128 MB |
| Interface | USB 2.0 (B-Type) Serial port: RS-232 (DB-9) Ethernet port (RJ-45) USB Host Port (A-Type) for User Input and Storage Optional Bluetooth or WiFi Module |
| Control Panel | Power on/off button Calibration button Control key: FEED |
Options for this model
This model is listed in its standard build. Godex offers peeler, cutter and wireless options across the range, and POS PLAZA stocks the Godex upgrade kits and spares separately. Call 1300 115 808 on 1300 115 808 if you need this printer supplied with an option fitted.
What is in the box
- GoDEX DT230+ label printer
- Power supply and lead
- USB cable
- GoLabel label design software
- Quick start guide
Before you order
Measure your label
The print width in the specifications is the hard limit. Check your label stock against it, and check the core size your rolls are wound on, before the printer arrives.
Check the software
This printer speaks the Godex languages. If you are replacing an existing printer, those emulations are usually what lets your current label formats keep working.
Think about the consumables
The label and ribbon cost outruns the printer cost quickly. Tell us what you are printing and we will quote the stock alongside the hardware.
Frequently Asked Questions
Does it need a ribbon?
No. This is a direct thermal printer, so it prints onto heat sensitive label stock with no ribbon to buy or load. That keeps the running cost down. The trade off is that direct thermal print fades with heat and light over months, so it suits shipping labels and pick tickets rather than long life asset tags.
What does 300dpi (12 dots/mm) actually mean for my labels?
Resolution is how many dots the head lays down per inch. 300dpi (12 dots/mm) is the working figure for this model. Higher resolution matters when you are printing small text, fine logos or dense 2D barcodes onto small labels. For plain product and shipping labels the lower resolutions are usually sharper than they need to be already.
How fast is it and how wide can the label be?
Godex rates it at 127 mm / sec (5 ips) with a maximum print width of 56.9mm (2.24"). The width is the limit on the label itself: anything wider than that cannot be filled edge to edge, so measure your label stock against that figure before ordering.
How does it connect?
As standard it offers USB 2.0 (B-Type) Serial port: RS-232 (DB-9) Ethernet port (RJ-45) USB Host Port (A-Type) for User Input and Storage Optional Bluetooth or WiFi Module. Tell us how the printer will sit on your network when you order and we will confirm you have the right build.
Is label design software included?
Godex supplies its GoLabel design software at no extra cost, which is enough to lay out and print labels without buying a third party package. If you already use a labelling or ERP system you will more likely drive the printer from that instead, through the language emulations listed in the specifications.
What warranty does it carry?
A 24 Months Return to Base manufacturer's warranty. Return to base means a faulty unit comes back to us for assessment and repair or replacement rather than an engineer attending site. Consumable parts are excluded, which on a thermal printer means the thermal print head and the platen roller. Both are wear items with a working life measured in printed metres rather than in years, so they are replaced on a service schedule rather than claimed, and POS PLAZA stocks both for this range.
Can I see a sample label before I commit?
Call us on 1300 115 808. Choosing between resolutions and between direct thermal and thermal transfer is much easier against a printed sample of your own artwork than against a specification sheet.
