GoDEX RT700x Label Printer

SKU: GX-RT700x
FOUND A CHEAPER PRICE? *
Write a Review
Excl.GST: $604.50
Incl.GST: $664.95
Warranty:
24 Months Return to Base
BUY NOW
Label Printer

GoDEX RT700x Label Printer

4" 203DPI direct thermal/thermal transfer intelligent label printer (no LCD display)

  • 203 dpi
  • DT and TT
  • 7 ips
  • 4.25" (108mm)
  • Ethernet
  • 24 Months Return to Base

At a glance

Print MethodThermal Transfer / Direct Thermal
Resolution203 dpi (8 dots/mm)
Print Speed7 ips (177mm/s)
Print Width4.25" (108mm)
InterfaceUSB 2.0, RS-232 (DB-9), Ethernet (RJ45), USB Host Port
Warranty24 Months Return to Base, consumables excluded

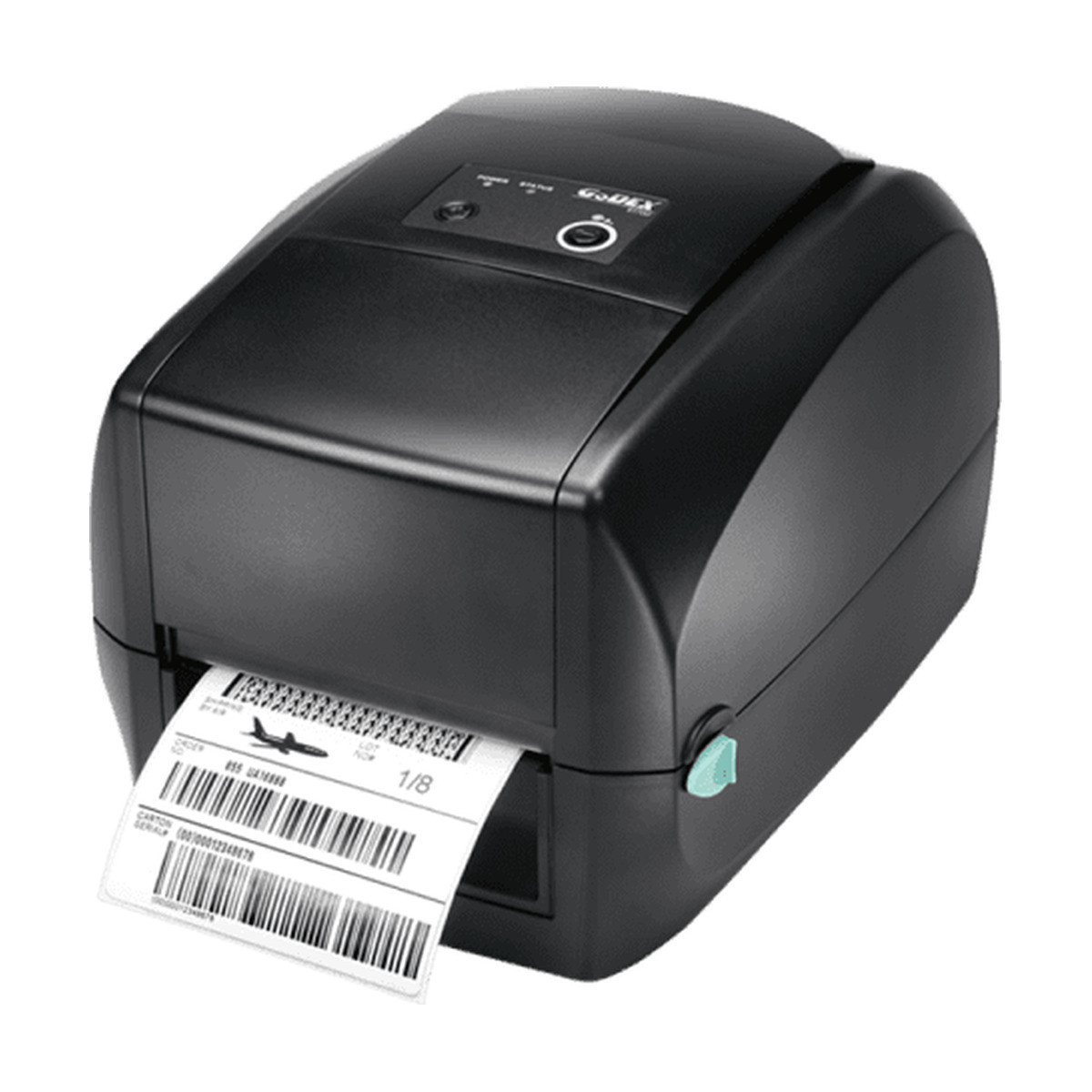

GoDEX RT700x label printer, front view

Smart and reliable high speed desktop barcode label printer for a broad range of applications. Advanced multi-purpose 4" desktop printer for light to medium duty applications. With its powerful and reliable features, RT700X series is the best choice for retail and industrial applications.

POS PLAZA supplies the GoDEX RT700x in Australia with the Godex consumables, upgrade kits and spare parts that go with it, including print heads and platen rollers, so a worn part does not mean replacing the printer. It carries a 24 Months Return to Base manufacturer's warranty, which excludes consumable parts, meaning the thermal print head and the platen roller. For help choosing between resolutions, or between direct thermal and thermal transfer, call us on 1300 115 808.

Why choose the GoDEX RT700x

Modern clam-shell design makes

Modern clam-shell design makes it simple to load labels

Resolution

Prints at 203 dpi (8 dots/mm), which sets how fine the text, the barcodes and any logo on the label can be.

Print speed

Rated at 7 ips (177mm/s), so a run of labels clears the printer rather than queueing behind it.

Label width

Takes a print width of 4.25" (108mm), which governs the largest label this printer can fill edge to edge.

Connectivity

Connects by USB 2.0, RS-232 (DB-9), Ethernet (RJ45), USB Host Port, so it drops onto a counter, a bench or a network without an adapter.

Where it fits

Labels that have to last

Thermal transfer uses a ribbon, so the print does not fade with heat or light the way a direct thermal label does. That is what you want on asset tags, chemical labels and anything stored for months.

Short life labels

Direct thermal needs no ribbon at all, which makes it the cheaper way to run shipping labels, pick tickets and anything read within weeks rather than years.

Fitting an existing system

With the standard Godex languages emulation it can usually take the label formats your current software already sends, which matters more than the hardware when you are replacing a printer.

Full specifications

Print MethodThermal Transfer / Direct Thermal
Resolution203 dpi (8 dots/mm)
Print Speed7 ips (177mm/s)
Print Width4.25" (108mm)
Print LengthMin. 4mm (0.16") - Max. 1727mm (68")
Processor32-bit RISC CPU
MemoryFlash: 8 MB Flash (4 MB for user storage) SDRAM : 16 MB
InterfaceUSB 2.0, RS-232 (DB-9), Ethernet (RJ45), USB Host Port
RibbonLength: Up to 300m - Width: 30mm to 110mm Max Core diameter: 25.4mm (1")
Control PanelTwo dual colour LEDs (Ready and Status) Control key: FEED Power on/off button Calibration button

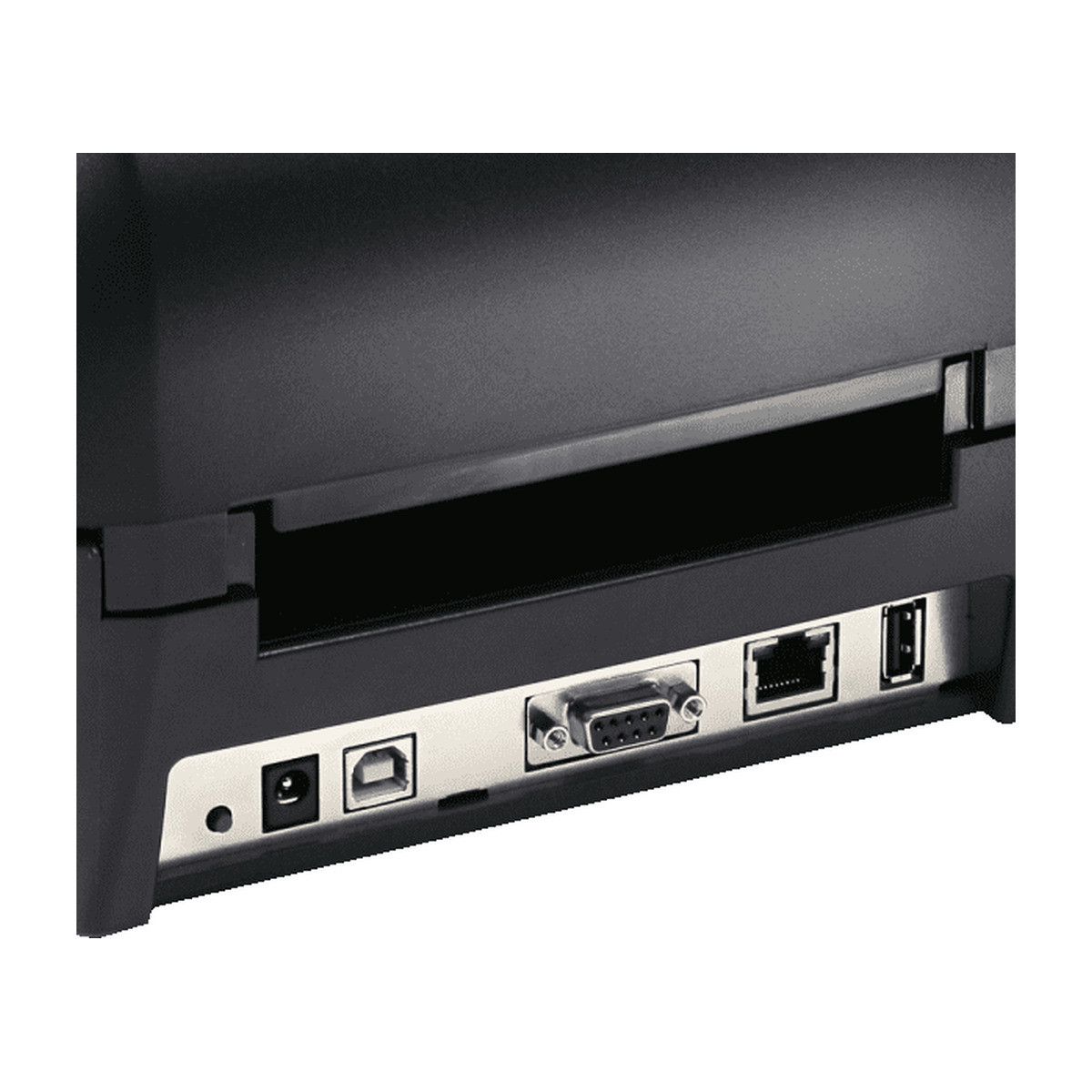

GoDEX RT700x label printer, second view

Options for this model

This model is listed in its standard build. Godex offers peeler, cutter and wireless options across the range, and POS PLAZA stocks the Godex upgrade kits and spares separately. Call 1300 115 808 on 1300 115 808 if you need this printer supplied with an option fitted.

What is in the box

  • GoDEX RT700x label printer
  • Power supply and lead
  • USB cable
  • GoLabel label design software
  • Quick start guide

Before you order

Measure your label

The print width in the specifications is the hard limit. Check your label stock against it, and check the core size your rolls are wound on, before the printer arrives.

Check the software

This printer speaks the Godex languages. If you are replacing an existing printer, those emulations are usually what lets your current label formats keep working.

Think about the consumables

The label and ribbon cost outruns the printer cost quickly. Tell us what you are printing and we will quote the stock alongside the hardware.

Frequently Asked Questions

Does it need a ribbon?

Only in thermal transfer mode. This printer does both: direct thermal needs no ribbon and prints onto heat sensitive label stock, while thermal transfer uses a ribbon to lay ink onto the label. Direct thermal is cheaper to run and fades over months, thermal transfer costs more per label and lasts. Choose per job, the printer does not care.

What does 203 dpi (8 dots/mm) actually mean for my labels?

Resolution is how many dots the head lays down per inch. 203 dpi (8 dots/mm) is the working figure for this model. Higher resolution matters when you are printing small text, fine logos or dense 2D barcodes onto small labels. For plain product and shipping labels the lower resolutions are usually sharper than they need to be already.

How fast is it and how wide can the label be?

Godex rates it at 7 ips (177mm/s) with a maximum print width of 4.25" (108mm). The width is the limit on the label itself: anything wider than that cannot be filled edge to edge, so measure your label stock against that figure before ordering.

How does it connect?

As standard it offers USB 2.0, RS-232 (DB-9), Ethernet (RJ45), USB Host Port. Tell us how the printer will sit on your network when you order and we will confirm you have the right build.

Is label design software included?

Godex supplies its GoLabel design software at no extra cost, which is enough to lay out and print labels without buying a third party package. If you already use a labelling or ERP system you will more likely drive the printer from that instead, through the language emulations listed in the specifications.

What warranty does it carry?

A 24 Months Return to Base manufacturer's warranty. Return to base means a faulty unit comes back to us for assessment and repair or replacement rather than an engineer attending site. Consumable parts are excluded, which on a thermal printer means the thermal print head and the platen roller. Both are wear items with a working life measured in printed metres rather than in years, so they are replaced on a service schedule rather than claimed, and POS PLAZA stocks both for this range.

Can I see a sample label before I commit?

Call us on 1300 115 808. Choosing between resolutions and between direct thermal and thermal transfer is much easier against a printed sample of your own artwork than against a specification sheet.

Summary

The GoDEX RT700x is a Godex label printer supplied by POS PLAZA. Key specifications: print method Thermal Transfer / Direct Thermal; resolution 203 dpi (8 dots/mm); print speed 7 ips (177mm/s); print width 4.25" (108mm); print length Min. 4mm (0.16") - Max. 1727mm (68"); processor 32-bit RISC CPU; memory Flash: 8 MB Flash (4 MB for user storage) SDRAM : 16 MB; interface USB 2.0, RS-232 (DB-9), Ethernet (RJ45), USB Host Port. GoLabel label design software is included by Godex at no extra cost, and POS PLAZA stocks the matching Godex consumables, upgrade kits and spare parts in Australia. It carries a 24 Months Return to Base manufacturer's warranty, which excludes consumable parts, meaning the thermal print head and the platen roller. Sold in Australia by POS PLAZA, 1300 115 808, with free shipping over $500 excluding GST.

Need labels and ribbons to match?

Shop label rolls
Manufacturer: Godex
Print Method: Thermal Transfer / Direct Thermal
Resolution: 203 dpi (8 dots/mm)
Print Speed: 7 ips (177mm/s)
Print Width: 4.25" (108mm)
Print Length: Min. 4mm (0.16") - Max. 1727mm (68")
Processor: 32-bit RISC CPU
Memory: Flash: 8 MB Flash (4 MB for user storage) SDRAM : 16 MB
Interface: USB 2.0, RS-232 (DB-9), Ethernet (RJ45), USB Host Port
Ribbon: Length: Up to 300m - Width: 30mm to 110mm Max Core diameter: 25.4mm (1")
Control Panel: Two dual colour LEDs (Ready and Status) Control key: FEED Power on/off button Calibration button
Warranty: 24 Months Return to Base
