A 4-inch 203dpi direct thermal desktop label printer with USB, Serial and Ethernet and a built-in peeler, a reliable, value-priced workhorse for counter and warehouse labelling.

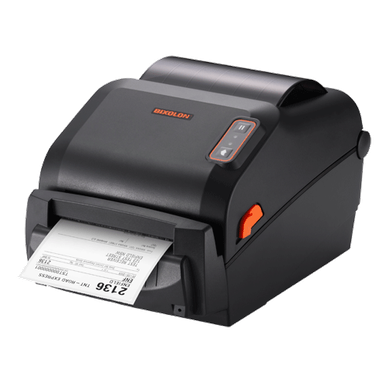

The BIXOLON XD5-40d (DEK) is the wired, peeler configuration of BIXOLON's 4-inch direct thermal desktop label printer. It prints sharp 203dpi barcodes and labels at up to 7 ips over USB, USB Host, Serial (RS232) and Ethernet, a dependable choice for a fixed counter or packing bench where wired connectivity is preferred.
A built-in peeler separates each label from its backing as it prints, so staff can peel and apply in one motion, ideal for product, address and compliance labelling. With ZPL II (BPL-Z), SLCS and EPL emulation plus OPOS/JPOS, Windows, CUPS and BarTender UltraLite drivers, it integrates with existing label software, including Zebra ZPL workflows, at a lower price than the wireless model.
The XD5-40d comes in two configurations. Both share the same 203dpi, 4-inch, 7 ips direct thermal engine and 256MB memory; the difference is connectivity and label finishing.
| This printer | XD5-40d Wireless + Auto Cutter | |
|---|---|---|
| Connectivity | USB, USB Host, Serial, Ethernet | Wi-Fi, Bluetooth, LAN, Serial, USB |
| Label finishing | Peeler | Auto Cutter |
| Print engine | 203dpi, 7 ips, 4 inch | 203dpi, 7 ips, 4 inch |
| Best for | Fixed wired benches, peel-and-apply | Wireless and mobile setups, shipping |
Also available: the XD5-40d Wireless + Auto Cutter (dual-band Wi-Fi, Bluetooth and an auto cutter).
| Brand | BIXOLON |
| Model | XD5-40d |
| SKU | XD5-40dDEK |
| Type | 4-inch desktop direct thermal label printer |
| Print method | Direct Thermal (no ribbon or ink) |
| Resolution | 203 dpi |
| Max print speed | 7 ips (178 mm/sec) |
| Max print width | 108 mm (4 inch) |
| Max print length | 1,000 mm |
| Media width | 15 to 118 mm |
| Media roll diameter | Up to 127 mm (5 inch) OD |
| Core size | 25.4 to 38.1 mm (1 to 1.5 inch) |
| Media / sensors | Gap, Black Mark, Notch, Continuous, Fan-Fold; transmissive and reflective sensors |
| Memory | 256 MB SDRAM + 256 MB Flash |
| Emulation | SLCS, BPL-Z (ZPL II), BPL-E (EPL) |
| Interfaces | USB, USB Host, Serial (RS232), Ethernet |
| Label finishing | Label Peeler (included) |
| Drivers | Windows (Seagull / Europlus), macOS and Linux CUPS, OPOS / JPOS, BarTender UltraLite |
| Power | External adapter 100-240 VAC, 50/60 Hz (EnergyStar) |
| Dimensions | 194 x 248 x 169 mm (W x L x H) |
| Weight | 1.89 kg |
| Operating temperature | 0 to 40 degrees C |
| Colour | Black |
| Warranty | 2 Years Return to Base |
Need labels for this printer? Shop 4-inch direct thermal label rolls.
Shop label rollsWired USB or Ethernet gives a rock-solid link at a fixed packing station.
The peeler presents each product, address or compliance label ready to stick.
A dependable, lower-cost 4-inch label printer for everyday barcode and price labels.
Yes in most cases. The XD5-40d supports SLCS, ZPL II (BPL-Z) and EPL emulation, so it drops into many existing label workflows including Zebra ZPL environments, and it ships with Windows (Seagull/Europlus), macOS and Linux CUPS, OPOS/JPOS and BarTender UltraLite drivers. Because each POS or label platform certifies its own hardware, confirm the XD5-40d (or ZPL) is supported by your software, or call us on 1300 115 808 before ordering.
No. The XD5-40d is a direct thermal printer, so it prints using heat with no ribbon, ink or toner. If you need long-life labels that resist heat and light, ask us about the thermal transfer XD5-40t model instead.
It handles media 15 to 118mm wide, rolls up to 127mm (5 inch) outer diameter on a 25.4 to 38.1mm (1 to 1.5 inch) core, and gap, black-mark, notch, continuous or fan-fold stock. Maximum print width is 108mm (4 inch).
This DEK configuration is wired: USB, USB Host, Serial (RS232) and Ethernet. If you need Wi-Fi or Bluetooth, choose the XD5-40d Wireless + Auto Cutter model instead. Call us on 1300 115 808 and we will match the right configuration.
An auto cutter slices each label off the roll so you get a cleanly cut label, which suits shipping and fulfilment. A peeler separates the label from its backing so staff can pick it up and apply it in one motion, which suits product and address labelling. This model includes a peeler.
The BIXOLON XD5-40d is covered by a 2 year Return to Base warranty. Contact our team on 1300 115 808 to confirm warranty and support options for your setup.
The BIXOLON XD5-40d (DEK) is a 4-inch desktop direct thermal label printer for Australian retail, warehouse and logistics. It prints 203dpi barcodes and labels at up to 7 ips across a 108mm width, takes media up to 118mm wide on rolls to 127mm OD, and carries 256MB SDRAM plus 256MB Flash with SLCS, ZPL II and EPL emulation. This configuration adds USB, USB Host, Serial and Ethernet with a built-in label peeler. It measures 194 x 248 x 169 mm, weighs 1.89 kg and is covered by a 2 year Return to Base warranty. Order online or call 1300 115 808. Free shipping over $500 (excl. GST).
Brand: BIXOLON · Model: XD5-40d · SKU: XD5-40dDEK · Type: 4-inch direct thermal desktop label printer · Resolution: 203 dpi · Speed: 7 ips · Print width: 108 mm · Emulation: SLCS, ZPL II, EPL · Interfaces: USB, Serial, Ethernet · Finishing: Peeler · Warranty: 2 Years Return to Base
