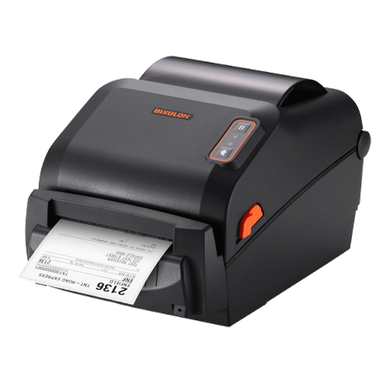

A 4-inch 203dpi direct thermal desktop label printer with dual-band Wi-Fi, Bluetooth and a built-in auto cutter, for fast, cable-free barcode and shipping label printing.
The BIXOLON XD5-40d (CEBK/AUS) is the wireless, auto-cutter configuration of BIXOLON's 4-inch direct thermal desktop label printer. It prints crisp 203dpi barcodes and labels at up to 7 ips, and its dual-band Wi-Fi (2.4/5GHz), Bluetooth V4.1 and wired Ethernet, Serial and USB let it drop into almost any counter, warehouse or mobile setup without being tied to one cable.
A field-installable auto cutter is included, so labels are cut cleanly to length for shipping, pick-and-pack and order fulfilment. With ZPL II (BPL-Z), SLCS and EPL emulation plus OPOS/JPOS, Windows, CUPS and BarTender UltraLite drivers, it slots into existing label workflows, including Zebra ZPL environments, with minimal changes.
The XD5-40d comes in two configurations. Both share the same 203dpi, 4-inch, 7 ips direct thermal engine and 256MB memory; the difference is connectivity and label finishing.
| This printer | XD5-40d with Peeler (wired) | |
|---|---|---|
| Connectivity | Wi-Fi, Bluetooth, LAN, Serial, USB | USB, USB Host, Serial, Ethernet |
| Label finishing | Auto Cutter | Peeler |
| Print engine | 203dpi, 7 ips, 4 inch | 203dpi, 7 ips, 4 inch |
| Best for | Wireless and mobile setups, shipping | Fixed wired benches, peel-and-apply |
Also available: the XD5-40d with Peeler (wired) (wired USB/Serial/Ethernet with a peeler).
| Brand | BIXOLON |
| Model | XD5-40d |
| SKU | XD5-40dCEBK/AUS |
| Type | 4-inch desktop direct thermal label printer |
| Print method | Direct Thermal (no ribbon or ink) |
| Resolution | 203 dpi |
| Max print speed | 7 ips (178 mm/sec) |
| Max print width | 108 mm (4 inch) |
| Max print length | 1,000 mm |
| Media width | 15 to 118 mm |
| Media roll diameter | Up to 127 mm (5 inch) OD |
| Core size | 25.4 to 38.1 mm (1 to 1.5 inch) |
| Media / sensors | Gap, Black Mark, Notch, Continuous, Fan-Fold; transmissive and reflective sensors |
| Memory | 256 MB SDRAM + 256 MB Flash |
| Emulation | SLCS, BPL-Z (ZPL II), BPL-E (EPL) |
| Interfaces | USB, USB Host, Serial (RS232), Ethernet, Wi-Fi (dual-band 2.4/5GHz), Bluetooth V4.1 |
| Label finishing | Auto Cutter (field-installable, included) |
| Drivers | Windows (Seagull / Europlus), macOS and Linux CUPS, OPOS / JPOS, BarTender UltraLite |
| Power | External adapter 100-240 VAC, 50/60 Hz (EnergyStar) |
| Dimensions | 194 x 248 x 169 mm (W x L x H) |
| Weight | 1.89 kg |
| Operating temperature | 0 to 40 degrees C |
| Colour | Black |
| Warranty | 2 Years Return to Base |
Need labels for this printer? Shop 4-inch direct thermal label rolls.
Shop label rollsPrint barcodes and shelf labels over Wi-Fi without running a cable to the register.
The auto cutter trims 4-inch shipping and address labels cleanly to length.
Bluetooth and Wi-Fi suit picking carts and flexible warehouse stations.
Yes in most cases. The XD5-40d supports SLCS, ZPL II (BPL-Z) and EPL emulation, so it drops into many existing label workflows including Zebra ZPL environments, and it ships with Windows (Seagull/Europlus), macOS and Linux CUPS, OPOS/JPOS and BarTender UltraLite drivers. Because each POS or label platform certifies its own hardware, confirm the XD5-40d (or ZPL) is supported by your software, or call us on 1300 115 808 before ordering.
No. The XD5-40d is a direct thermal printer, so it prints using heat with no ribbon, ink or toner. If you need long-life labels that resist heat and light, ask us about the thermal transfer XD5-40t model instead.
It handles media 15 to 118mm wide, rolls up to 127mm (5 inch) outer diameter on a 25.4 to 38.1mm (1 to 1.5 inch) core, and gap, black-mark, notch, continuous or fan-fold stock. Maximum print width is 108mm (4 inch).
Yes. This CEBK/AUS configuration includes dual-band Wi-Fi (2.4/5GHz) and Bluetooth V4.1 alongside Ethernet, Serial and USB, and a built-in auto cutter. If you only need wired connectivity and a peeler, the lower-cost XD5-40d with Peeler covers that.
An auto cutter slices each label off the roll so you get a cleanly cut label, which suits shipping and fulfilment. A peeler separates the label from its backing so staff can pick it up and apply it in one motion, which suits product and address labelling. This model includes an auto cutter.
The BIXOLON XD5-40d is covered by a 2 year Return to Base warranty. Contact our team on 1300 115 808 to confirm warranty and support options for your setup.
The BIXOLON XD5-40d (CEBK/AUS) is a 4-inch desktop direct thermal label printer for Australian retail, warehouse and logistics. It prints 203dpi barcodes and labels at up to 7 ips across a 108mm width, takes media up to 118mm wide on rolls to 127mm OD, and carries 256MB SDRAM plus 256MB Flash with SLCS, ZPL II and EPL emulation. This configuration adds dual-band Wi-Fi, Bluetooth V4.1, Ethernet, Serial and USB with a field-installable auto cutter. It measures 194 x 248 x 169 mm, weighs 1.89 kg and is covered by a 2 year Return to Base warranty. Order online or call 1300 115 808. Free shipping over $500 (excl. GST).
Brand: BIXOLON · Model: XD5-40d · SKU: XD5-40dCEBK/AUS · Type: 4-inch direct thermal desktop label printer · Resolution: 203 dpi · Speed: 7 ips · Print width: 108 mm · Emulation: SLCS, ZPL II, EPL · Interfaces: USB, Serial, Ethernet, Wi-Fi, Bluetooth · Finishing: Auto Cutter · Warranty: 2 Years Return to Base
