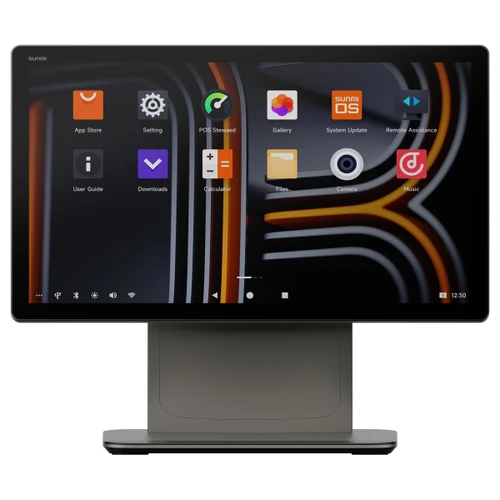

Third-generation SUNMI desktop terminal: 15.6 inch FHD touchscreen, aluminium body and concealed cable management.
| Model | SUNMI D3 PRO (F3510) |
|---|---|
| OS | SUNMI OS 4.0 / Android 13 |
| Processor | Qualcomm hexa-core 2.4GHz |
| Memory | 4GB RAM + 64GB ROM |
| Display | 15.6" FHD, 10-point touch |
| Network | Gigabit LAN, Wi-Fi 5, BT 5.0 |
| Dimensions | 380 x 195 x 310 mm, 4.5 kg |
| Warranty | 12 Months Return to Base |
The SUNMI D3 PRO is the terminal SUNMI builds for a counter you actually have to look at all day. The 15.6 inch FHD screen sits in a thin bezel on an aluminium body, and the stand and base are shaped to hide the cables rather than let them spill across the bench. Underneath it runs SUNMI OS 4.0 on Android 13, driven by a Qualcomm hexa-core chip at up to 2.4GHz with 4GB of RAM and 64GB of storage, so a full till application with a busy product catalogue stays responsive. Connectivity is everything a POS bench needs: Gigabit LAN, dual-band Wi-Fi, Bluetooth 5.0, three USB-A ports, USB-C, a serial port and a cash drawer port. This is the single-screen configuration, part number P01270009. A 10.1 inch customer display is available separately and connects with one USB cable.
At 380 x 195 x 310 mm and 4.5 kg the D3 PRO is a solid piece of equipment, and that is deliberate: the aluminium body and weighted base stop it moving when someone jabs the screen, and the stand swallows the power, LAN and drawer cables instead of letting them loop across the bench.
Six cores and 4GB of RAM, which is where the D3 PRO pulls away from the older RK-based SUNMI terminals. Large catalogues, table maps and card integrations stay smooth.
A 1920 x 1080 panel in a thin bezel, with 10-point capacitive touch. Enough resolution to show a real order grid rather than six huge buttons.
The stand and base are built around cable routing, so the LAN lead, the drawer cable and the power brick run inside the column instead of across the counter.
Three USB-A (one 3.0), USB-C, RJ45 Gigabit LAN, an RJ11 serial port, an RJ12 cash drawer port and an audio jack. A printer, a scanner and a drawer all plug straight in.
Wi-Fi on 2.4GHz and 5GHz plus Bluetooth 5.0 with BLE, and a Gigabit wired port for the sites that will not trust wireless at the till.
SUNMI OS 4.0 ties the terminal to SUNMI One ID for remote deployment, and the power button can be specified with fingerprint recognition so staff log in with a thumb instead of a code.
A 15.6 inch screen fits a real table map, and the aluminium body and hidden cabling survive a wipe-down at close.
Gigabit LAN keeps the till talking to a back-office server, and the USB and serial ports run the printer, scanner and drawer from one box.
Android 13 means your booking or membership app runs natively, and SUNMI One ID lets head office push a new build to every site remotely.
| Brand | SUNMI |
|---|---|
| Model | D3 PRO |
| Product model | F3510 |
| Part number | P01270009 (single display) |
| Operating system | SUNMI OS 4.0, based on Android 13 |
| Processor | Qualcomm hexa-core, up to 2.4GHz |
| Memory | 4GB RAM |
| Storage | 64GB ROM |
| Expandable storage | 1 x MicroSD (TF card), up to 1TB supported |
| Main display | 15.6 inch FHD 1920 x 1080 |
| Touch | 10-point capacitive |
| Customer display | Optional 10.1 inch HD 1280 x 800 capacitive multitouch, sold separately |
| Wi-Fi | 2.4GHz and 5GHz, IEEE 802.11 a/b/g/n/ac |
| Bluetooth | BT 5.0, BLE supported |
| Network | LAN 1000M (Gigabit) |
| Ports | 1 x USB type-A 3.0, 2 x USB type-A 2.0, 1 x USB type-C 2.0, 1 x RJ45 LAN, 1 x RJ11 serial, 1 x RJ12 cash drawer, 1 x audio jack, 1 x power port, 1 x MicroUSB debug |
| Button | 1 x power button (lock screen, fingerprint recognition optional) |
| Speaker | 1 x 3W |
| Indicator light | Blue (power) |
| Body material | Aluminium |
| Dimensions (L x W x H) | 380 x 195 x 310 mm |
| Weight | 4.5 kg (optional 10.1 inch monitor 0.88 kg) |
| Power adapter | Input AC 100 to 240V 1.5A, output DC 24V 1.5A 36W |
| Operating temperature | 0 to 40 degrees C |
| Storage temperature | Minus 20 to 60 degrees C |
| Colour | Black |
| Condition | New |
| Warranty | 12 Months Return to Base |
| Terminal | Processor | Memory and storage | Display | Suits |
|---|---|---|---|---|
| SUNMI D3 PRO (this terminal) | Qualcomm hexa-core 2.4GHz | 4GB + 64GB | 15.6" FHD 1920 x 1080 | A current-generation counter that has to stay quick for years |
| SUNMI T2S LITE 15.6" | 2.2GHz | 4GB + 64GB | 15.6" flatscreen PCAP | Sites that want the integrated-printer T-series layout |
| SUNMI D2s LITE 15.6" | 1.2GHz | 2GB + 8GB | 15.6" flatscreen PCAP | A light till app on the smallest budget |
No. This listing is part number P01270009, the single-screen D3 PRO. The 10.1 inch customer display is a separate accessory that connects over one USB cable, is plug-and-play with no assembly, and adds a capacitive touch HD 1280 x 800 panel facing the customer. If you want the terminal and the display together, call us and we will quote the pair.
If your POS has an Android app, almost certainly. The D3 PRO runs SUNMI OS 4.0, which is built on Android 13, and installs standard Android applications. The thing to check is whether your provider publishes an Android build and whether they certify SUNMI hardware specifically, because some platforms only support a named device list. Tell us who you run and we will confirm before you order.
Three USB type-A ports (one of them USB 3.0) plus a USB type-C port, an RJ45 Gigabit LAN port, an RJ11 serial port, an RJ12 cash drawer port and an audio jack. In practice that covers a receipt printer, a barcode scanner, a cash drawer and a customer display at the same time, with a port spare.
It can. SUNMI lists fingerprint recognition on the power button as an option rather than standard equipment, so do not assume the unit you order has it. It pairs with SUNMI One ID for one-touch staff login. If fingerprint login is the reason you are buying, call POS Sales on 1300 026 062 and we will confirm the configuration first.
Not on its own. SUNMI offers NFC with Tap on Glass for SoftPOS on the optional 10.1 inch customer display, not on the base terminal, so the single-screen D3 PRO has no NFC reader. Most Australian sites take card payments through a separate bank terminal anyway, which connects to the D3 PRO over the network or serial port.
Yes. There is a MicroSD (TF card) slot that takes cards up to 1TB, on top of the 64GB of internal storage. Useful if you are holding a large product image library or offline transaction history.
The terminal is 380 mm long, 195 mm wide and 310 mm tall, and it weighs 4.5 kg. That weight is deliberate: the aluminium body and weighted base mean it stays put when someone taps the screen hard. The optional 10.1 inch monitor adds 0.88 kg.
Twelve months return to base. If uptime is critical, talk to us about what cover is available before you order, because a terminal going back for repair takes the till with it.
