The fully connected TSP143IV. Dual-band Wi-Fi, Bluetooth, Ethernet and USB in one 80mm thermal printer, with an internal power supply and a 2 million cut guillotine.

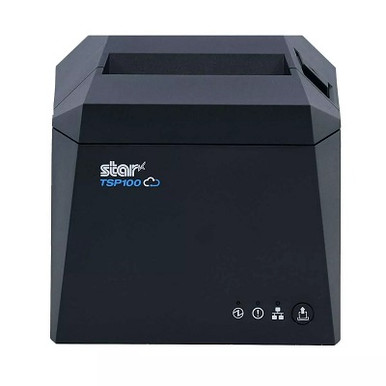

The Star TSP143IV-UEWB is the fully connected model in Star's fourth-generation TSP143 range. Where the other models each commit you to one connection type, this one ships with dual-band Wi-Fi, Bluetooth, Ethernet and USB all built in, so a single part number covers a wired counter, a tablet till or a site with no data point.
It prints 80mm receipts at up to 250 mm/second at 203 dpi, drops to 58mm with the roll guide supplied in the box, and cuts with a guillotine rated to 2 million cuts. The power supply is internal, so there is no brick under the counter, and the Australian power cables are included.
Star Micronics Australia lists this model at $899.00. Ours is $685.00 including GST.
Bluetooth and USB-A with AOA for iPad and Android tills, with Wi-Fi as the wireless fallback.
5GHz Wi-Fi avoids the congestion that makes dockets print late on a crowded 2.4GHz network.
One part number covers wired and wireless sites, so you hold a single spare instead of three.
| Brand | Star Micronics |
| Model | TSP143IV-UEWB |
| SKU | TSP143IV-UEWB |
| Print method | Direct thermal |
| Print resolution | 203 dpi |
| Maximum print speed | 250 mm/second |
| Interfaces | Wi-Fi (2.4GHz and 5GHz), Bluetooth, Ethernet, USB-A (AOA) and USB-C |
| Paper width | 80mm standard, 58mm with the included roll guide |
| Maximum roll diameter | 83mm |
| Cutter | Guillotine, rated to 2 million cuts |
| Power supply | Internal, AU power cables included |
| Colour | Dark grey |
| Series | Star TSP100 / TSP143IV |
| Warranty | 24 Months Return to Base |
Specifications as published by Star Micronics Australia for the TSP143IV-UEWB.
Against the other Star TSP143 models we stock. All four print at 250 mm/s at 203 dpi on 80mm paper, so the real difference is which interfaces you get and what you pay for them.
| TSP143IV-UEWB | TSP143IV Cloud | TSP143III WLAN | TSP143IIIBI | |
|---|---|---|---|---|
| Our price | $685.00 | $529.00 | $705.00 | $735.00 |
| Generation | IV | IV | III | III |
| Wi-Fi | Yes, dual-band 2.4 / 5GHz | No | Yes | No |
| Bluetooth | Yes | No | No | Yes |
| Ethernet | Yes | Yes | No | No |
| USB | USB-A (AOA) and USB-C | Yes | Yes | No |
| Print speed | 250 mm/s | 250 mm/s | 250 mm/s | 250 mm/s |
| Best for | One printer that covers every connection | Wired counters on a budget | Wireless only | Bluetooth tablet tills |
The UEWB is the only one of the four with every interface. If the printer will always sit on a network cable, the TSP143IV Cloud does the same printing for less. If you need wireless or Bluetooth, note that the UEWB is cheaper than either single-interface TSP143III while also being a generation newer.
Don't forget the 80mm thermal rolls.
Shop thermal rollsIt is Star's shorthand for the interfaces fitted: USB, Ethernet, Wireless and Bluetooth. This is the fully connected model in the TSP143IV range, so rather than choosing a Wi-Fi version or a Bluetooth version and being locked to it, you get all four on one unit and commission whichever the site needs.
Yes. It carries Bluetooth for tablet tills, and the USB-A port supports Android Open Accessory (AOA) so an Android device can print and charge over the one cable. There is also a USB-C port for modern hosts and dual-band Wi-Fi if you would rather keep the counter cable-free. Check your POS app's supported-hardware list, or call us on 1300 115 808 and we will confirm it against your setup first.
The 2.4GHz band is crowded in most venues, sharing space with other tills, phones, EFTPOS terminals and neighbouring businesses, and congestion there is a common cause of dockets printing late or not at all. This printer also runs on 5GHz, which is far less contested and generally more reliable in a busy cafe, bar or shopping centre.
No. The power supply is inside the printer and the Australian power cables are supplied, so there is nothing extra to mount under the counter or lose during a fit-out. That is consistent across the TSP100 range and is one reason it suits tight counters.
Standard 80mm direct thermal receipt rolls up to an 83mm roll diameter, and it drops to 58mm using the roll guide included in the box. As a direct thermal printer it needs no ink or ribbon, only the paper.
Same print engine: direct thermal, 203 dpi and up to 250 mm/s on both. The difference is connectivity. The standard TSP143IV Cloud model is Ethernet and USB, which is fine for a fixed wired counter. The UEWB adds dual-band Wi-Fi and Bluetooth on top, so it also covers tablet POS, mobile setups and sites where running a data cable is impractical. If you know the printer will always sit on a network cable, the standard model is the cheaper buy.
It comes with Star Micronics' 2 year manufacturer warranty, listed here as 24 Months Return to Base.
Yes. Star Micronics Australia lists the TSP143IV-UEWB at $899.00. Ours is $685.00 including GST, and we ship Australia-wide.
The Star Micronics TSP143IV-UEWB is the fully connected model in Star's fourth-generation TSP143 thermal receipt printer range, supplied in dark grey. It prints 80mm direct thermal receipts at up to 250 mm per second at 203 dpi, takes rolls to an 83mm diameter, and drops to 58mm with the roll guide included in the box. Unlike the single-interface models it carries dual-band Wi-Fi on 2.4GHz and 5GHz, Bluetooth, Ethernet, USB-A with Android Open Accessory support and USB-C, so one unit covers wired counters, tablet tills and sites without a data point. The cutter is a guillotine rated to 2 million cuts, the power supply is internal with Australian cables supplied, and it is backed by a 24 Months Return to Base manufacturer warranty. Star Micronics Australia lists it at $899.00; POS PLAZA sells it at $685.00 including GST and ships Australia-wide.
