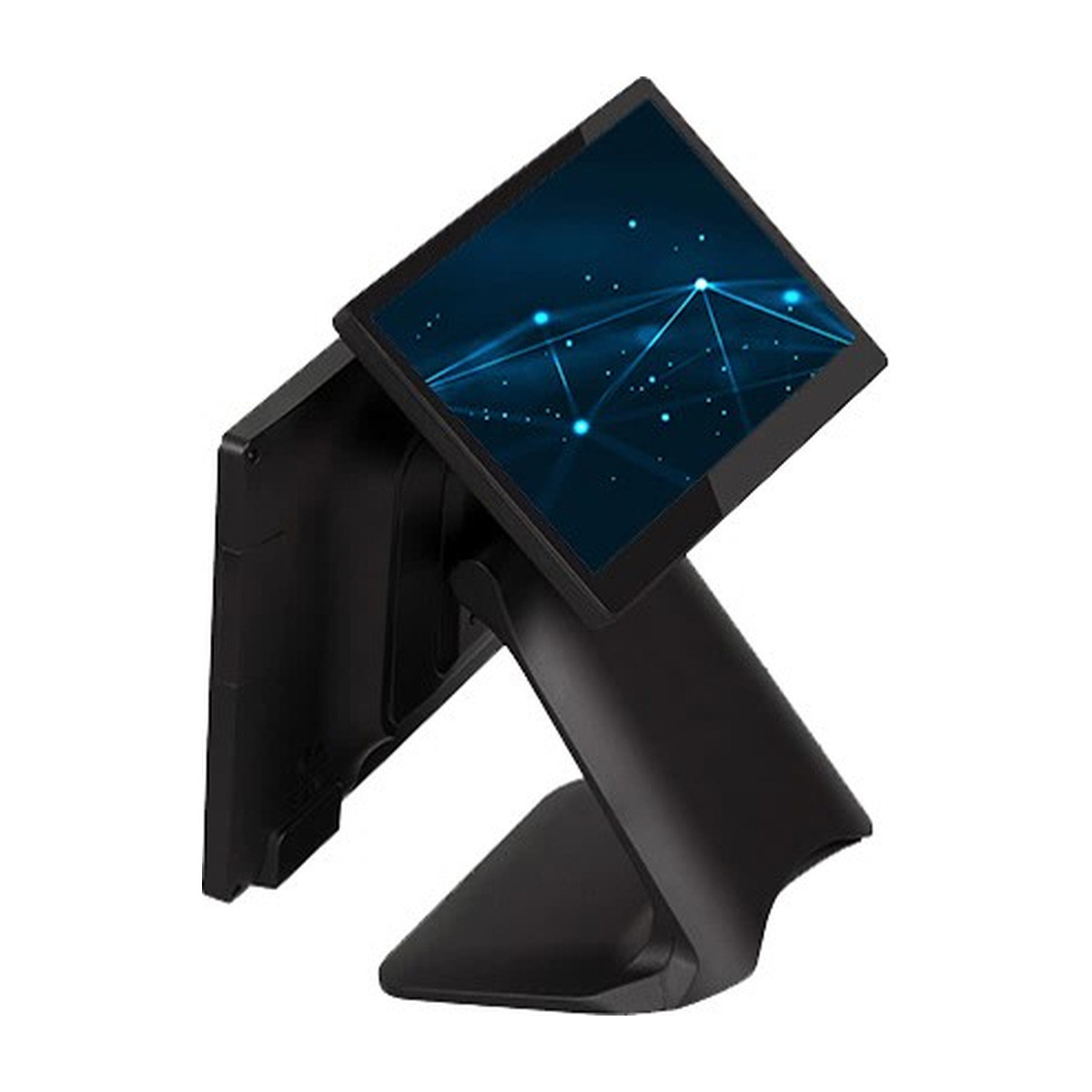

A 15 inch touch terminal with a 10.1 inch customer screen built onto the back of it, so the person paying can see the sale without a second display bolted to your counter.
| Model | Nexa NP-1653+ DD |
|---|---|
| Operator screen | 15 inch PCAP, 1024 x 768 |
| Customer screen | 10.1 inch rear LCD |
| Processor | Intel N97, up to 3.60GHz |
| Memory | 8GB DDR4 |
| Storage | 120GB SSD, user accessible |
| Operating system | Windows 11 IoT Enterprise |
| Cooling | Fanless |
| Warranty | 24 Months Return to Base |
The Nexa NP-1653+ Dual Display is the same terminal as the standard NP-1653+ with the rear customer screen already built in. On the operator side there is a 15 inch 4:3 projected capacitive touch panel at 1024 x 768. On the other side of the chassis, facing across the counter, sits a 10.1 inch LCD that shows the customer what is being rung up. Both run from the one Intel N97 quad core processor, which is fanless, so a terminal that spends twelve hours a day on a counter makes no noise and has no fan drawing dust through its electronics.
Choosing the dual display version rather than adding a display later removes a surprising amount of counter clutter: there is no bracket, no video cable, no second power lead and no second thing to knock. The terminal is aluminium and slimline metal, the base lifts off for VESA wall or pole mounting, and the SSD is reachable from the rear for servicing. Windows 11 IoT Enterprise is preloaded and the licence is in the price. Backed by a 24 Months Return to Base warranty with a 3 year on site upgrade available, and supported in Australia by POS PLAZA on 1300 115 808.
A 15 inch operator touch screen and a 10.1 inch rear customer display arrive on the same chassis, already fitted, cabled and driven by the one terminal.
A separate customer display costs money, eats counter depth and needs a bracket, a video lead and a power lead. This one has none of that.
A quad core N97 running to 3.60GHz with no fan in the case, so there is no noise at the counter and no fan intake pulling dust through the electronics.
The SSD is reachable from the back of the unit, so a drive swap or an image restore is a counter job rather than a return to the workshop.
Six USB, two serial, gigabit Ethernet, VGA and a powered RJ11/12 drawer jack, which is enough for a printer, a scanner, a drawer and a pin pad at once.
Windows 11 IoT Enterprise is preloaded and included, so there is no separate licence to buy and no first boot spent installing an operating system.
The customer watches the line items land as they are scanned. Fewer disputes at the end of a sale, and a faster path through a queue because nobody is reading the total upside down.
Tip prompts, loyalty sign ups, email receipt capture and signature confirmations can be put in front of the customer without turning the main screen around.
An idle customer screen is a 10.1 inch advert at eye level. Specials, opening hours or a seasonal promotion run on the counter without buying a separate display.
| Brand | Nexa |
|---|---|
| Model | NP-1653+ Dual Display |
| SKU | NP1653+DD |
| Product type | All in one touch POS terminal with an integrated rear customer display |
| Operator display | 15 inch 4:3 TFT LCD, 1024 x 768, projected capacitive touch |
| Customer display | 10.1 inch rear LCD, non touch |
| Processor | Intel N97 quad core, up to 3.60GHz, fanless |
| Memory | 8GB DDR4 as supplied (the platform accepts 8GB to 16GB) |
| Storage | 120GB SSD as supplied, user accessible (the platform accepts 128GB to 1TB) |
| Operating system | Windows 11 IoT Enterprise, preloaded and included in the price (the platform also supports Linux) |
| USB ports | 4 x USB 2.0, 2 x USB 3.0 |
| Serial ports | 2 |
| Network | RJ-45 Ethernet 10/100/1000Mbps |
| Other ports | Audio x 1, VGA DB-15 x 1, DC jack 12V, RJ11/12 cash drawer jack |
| Power supply | AC 100-240V 3.5A in, DC 12V 5A out |
| Dimensions | 356 W x 346 H x 222 D mm (terminal, excluding the rear display) |
| Net weight | 4.3 kg (terminal, excluding the rear display) |
| Operating temperature | 0 C to 40 C |
| Storage temperature | -40 C to 50 C |
| Construction | Slimline aluminium and metal case, fanless |
| Mounting | Removable base, VESA, wall or pole mount supported |
| Factory options | MSR with i-Button Dallas key combo, RFID, Wi-Fi, 2 x 20 VFD or LCD customer display, Intel Core i3 or i5 processor, wall mount |
| Colour | Black |
| Warranty | 24 Months Return to Base, with a 3 year on site upgrade available |
| NP-1653+ Dual Display | NP-1653+ | NP-2170 | |
|---|---|---|---|
| Operator screen | 15 inch PCAP, 1024 x 768 | 15 inch PCAP, 1024 x 768 | 15 inch PCAP |
| Customer screen | 10.1 inch rear LCD, fitted | Factory option, not fitted to this part number | Factory option |
| Processor | Intel N97 quad core | Intel N97 quad core | Intel Core i3, 12th generation |
| Memory and storage | 8GB, 120GB SSD | 8GB, 120GB SSD | 8GB, 128GB SSD |
| Cooling | Fanless | Fanless | Fanless |
| Best for | Counters that want the customer to see the sale, with no second display to buy or mount | Counters where only the operator needs a screen | Heavier workloads, several applications open at once or a demanding back office load |
A second screen is only worth having if your software drives it. Most packages do, but tell us which one you run and we will confirm the customer display mode before the terminal ships.
The terminal body is 356 mm wide, 346 mm high and 222 mm deep on its stand, and the rear screen sits above that, so measure the clearance behind the till position as well as in front of it.
MSR, RFID and Wi-Fi are factory options on this platform rather than things that clip on afterwards. If you want any of them, say so with the order and we will quote the right build.
It is included. That is the whole difference between this part number and the standard NP-1653+. On the base terminal the second screen is a factory option that has to be specified; on the NP1653+DD it is already fitted to the chassis, already cabled and already driven by the terminal, so there is nothing to add at checkout and nothing to assemble on the counter.
No. The rear 10.1 inch panel is an LCD without a touch layer. It is there to show the customer what is happening: items as they are rung up, the running total, a tip or loyalty prompt, or an advert while the counter is idle. All input happens on the 15 inch projected capacitive screen the operator uses.
Windows sees it as a second monitor, so anything that can target a second display will work. Most Australian POS packages have a customer display or customer facing mode built in, and the ones that do not can still throw a slideshow or a web page onto it. Tell us which package you run when you order and we will confirm what it supports.

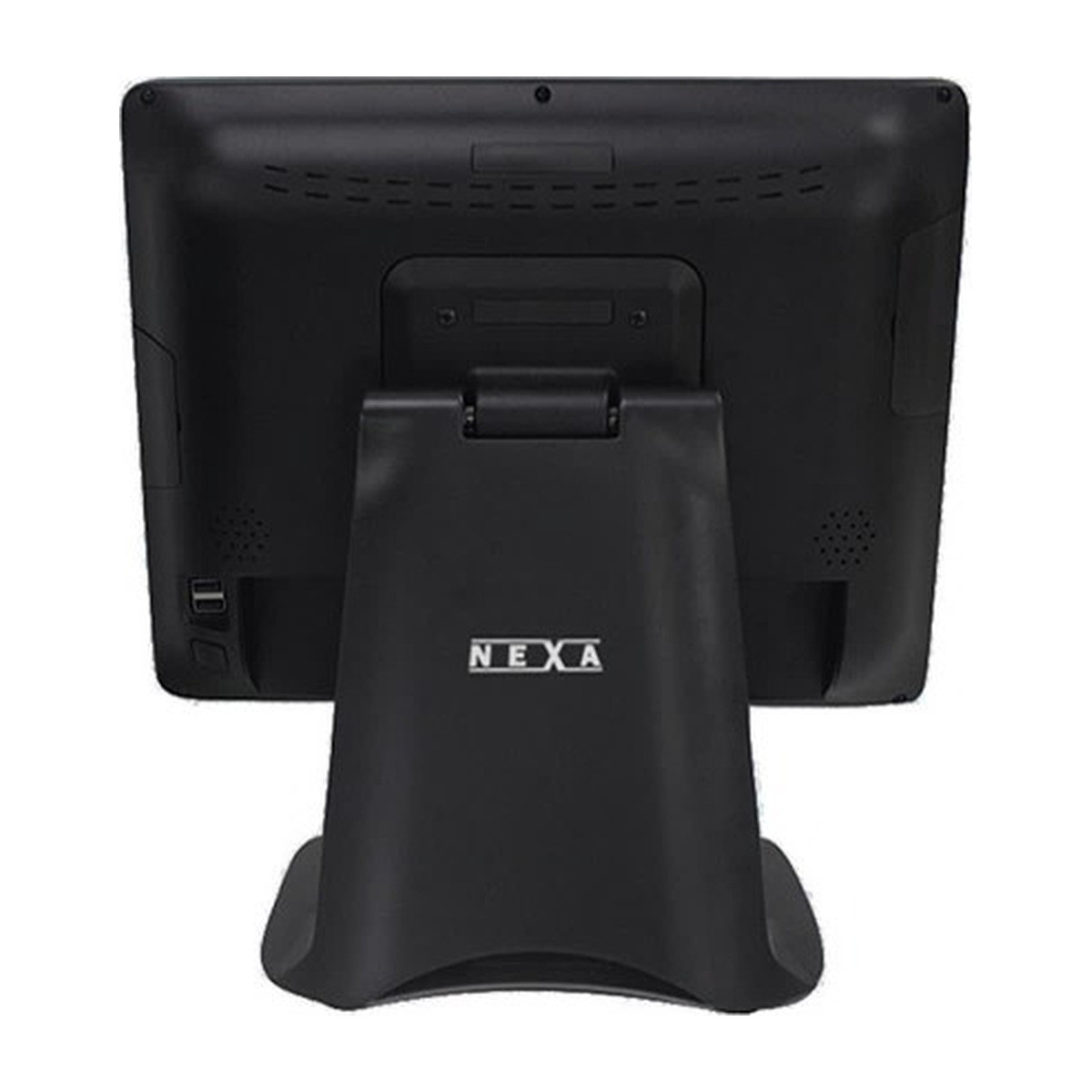

Yes. The base is removable and the terminal supports VESA mounting, so it can go on a wall bracket or a pole to free up counter space. The rear display is part of the terminal, so it travels with it.
Included. The terminal ships with Windows 11 IoT Enterprise preloaded and the licence is in the price. IoT Enterprise is the edition built for fixed function machines like this one, which is why it is used instead of a retail copy of Windows.
Yes, within the platform's limits. As supplied it has 8GB of DDR4 and a 120GB SSD. The NP-1653+ platform takes up to 16GB of memory and up to a 1TB drive, and the SSD is reachable from the back of the unit so a swap does not mean stripping the terminal down. Ask us before you order if you want it built with more.
Six USB ports in total, four USB 2.0 and two USB 3.0, two serial ports, gigabit Ethernet, a VGA output, an audio output and an RJ11/12 cash drawer jack. In practice that covers a receipt printer, a barcode scanner, a cash drawer, a pin pad and a scale without needing a hub.
It carries a 24 Months Return to Base warranty as standard. A 3 year on site upgrade is available through Nexa and covers most metropolitan areas, so call POS PLAZA on 1300 115 808 to check your postcode and add it to the order.
