A silent 21.5 inch Android panel for kitchen displays, self ordering and signage, with Power over Ethernet as an option.

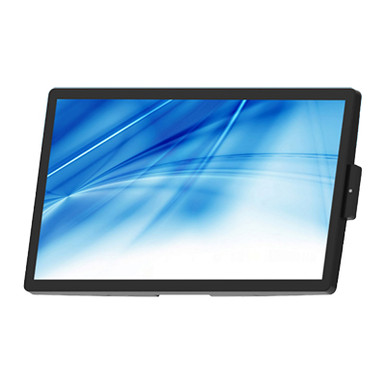

The Element K22A is a 21.5 inch Android panel PC rather than a till. It is built for the screens around the edges of a venue: the kitchen display on the line, the self ordering post by the door, the check in screen at reception, the menu board above the counter. It runs Android 13 with Google Mobile Services under Google's EDLA licensing, so a commercial Android app installs the way it would on any certified device, and the panel is driven by a MediaTek MT8390 with 8GB of memory and 64GB of storage.
Two things make it suit those jobs better than a general purpose display. It is fanless, which means no moving parts to pull grease and flour through, a real consideration above a kitchen pass, and it is silent in a quiet dining room. And it can be powered over Ethernet, so a single cable can carry both data and power to a screen mounted somewhere awkward. The front is 7H hardness glass with a 16.16mm bezel and the whole unit is 37.9mm deep, so on a VESA 100 arm it sits close to flat against a wall.
The HDMI and audio ports on the K22A are not fitted as standard, they are a build option. For a kitchen display, a self ordering post or a signage panel that is usually irrelevant, because the application runs on the device itself. It matters if you intend to mirror or extend to a second screen, or to feed audio to an external amplifier. Tell us before you order and the unit will be built with them. Call 1300 115 808.
A fanless 21.5 inch screen with no moving parts to clog, running an Android KDS app on the line.
Ten point capacitive touch behind 7H glass, sized for a customer to use unaided.
VESA 100 mounting and a 37.9mm depth let it sit flat against a wall or a column.
| Form factor | 21.5 inch fanless Android full flat touch panel PC |
| Operating system | Android 13 with GMS (EDLA) |
| Processor | MediaTek MT8390 (i700) |
| Graphics | Arm Mali-G57 MC3 |
| Memory | 8GB DDR4 / LPDDR4 |
| Storage | 64GB eMMC |
| Display | 21.5 inch TFT LCD, 1920 x 1080 (Full HD) |
| Touch | Projected capacitive, 10 point |
| Brightness | 225 nits with the P-CAP touch panel (the non touch panel is 250 nits) |
| Contrast ratio | 1000:1 |
| Viewing angle | 178 degrees horizontal, 178 degrees vertical |
| Display surface | 7H hardness durable glass |
| Bezel and depth | 16.16mm slim bezel free design, 37.9mm deep |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2 |
| USB | 3 x USB-C 3.0, 2 x USB 3.0 Type A, 3 x USB 2.0 built in peripheral ports (5V at 0.5A) |
| LAN | 10/100/1000 |
| Card slot | 1 x Micro SD (SDHC 2.0) |
| HDMI and audio ports | Not fitted as standard, available as a build option |
| Speakers | 2 x 2W |
| Housing colour | Dark grey |
| VESA | 100 mm x 100 mm |
| Power | 12V 90W external adaptor, or Power over Ethernet, selectable |
| Warranty | 3 Years Return to Base |
| Element K22A, this one | Element K22W | |
|---|---|---|
| Operating system | Android 13 with GMS | Windows 11 IoT Enterprise LTSC 2024 |
| Processor | MediaTek MT8390 (i700) | Intel Celeron J6412, 2.0 GHz |
| Memory | 8GB, fixed | 8GB SO-DIMM DDR4, expandable to 32GB |
| Storage | 64GB eMMC | 128GB M.2 SSD |
| Display | 21.5 inch, 1920 x 1080, 225 nits | 21.5 inch, 1920 x 1080, 225 nits |
| Serial port | No | 1 x RS232 (DB9) |
| Micro SD slot | Yes | No |
| Power over Ethernet | Yes, selectable | No |
| Housing | Dark grey | Black |
| Warranty | 3 Years Return to Base | 3 Years Return to Base |
It is a panel PC, which means it is a screen with an Android computer behind it. It can run a POS app, but its natural jobs are the ones a till cannot do: a kitchen display system on the line, a self ordering or self checkout post, a check in screen, or a digital menu board. Those are the roles it is built for. If you want a staffed till with a cash drawer port and a receipt printer hanging off it, look at a dedicated POS terminal instead.
Two things. Reliability in dirty air, because a fan pulls airborne grease and flour straight through the electronics and a fanless unit has nothing drawing it in, which matters anywhere near a kitchen. And silence, which matters in a dining room or a waiting area where a fan whine is noticeable all day.
It takes either a 12V 90W external adaptor or Power over Ethernet, selectable at order. PoE means the screen takes both its data and its power from one cable, which is the difference between an easy install and running a new power circuit to a ceiling or a column. Confirm the PoE option with us when you order, and make sure your switch has the budget for it.
It runs Android 13 with Google Mobile Services under EDLA, which is Google's licensing programme for dedicated devices. In practice that means the Play Store and Google services are present and a commercial Android POS or KDS app installs normally. Check with your software vendor that they support a 21.5 inch landscape Android device, since some apps are laid out for tablets.
The touch version is 225 nits, with a 1000:1 contrast ratio and 178 degree viewing angles both horizontally and vertically. That is a normal indoor brightness: fine for a kitchen, a counter or an interior wall, but not a high brightness panel built to fight direct sunlight through a shopfront window. If the screen faces a bright window, tell us and we will point you at something brighter.
Same 21.5 inch chassis, same screen, same 7H glass, same VESA mounting. The K22A is Android 13 on a MediaTek MT8390 with 8GB and 64GB, and it can take Power over Ethernet. The K22W is Windows 11 IoT on an Intel Celeron J6412 with a 128GB SSD, memory expandable to 32GB, and a real RS232 serial port. Pick on your software first: Android app, take the K22A, Windows software, take the K22W.
Yes. It has a 100 mm x 100 mm VESA pattern and the unit is only 37.9mm deep, so on a flat wall bracket it sits close to the surface. Any standard VESA 100 arm, pole or desk mount will take it.
3 Years Return to Base. Return the unit to us within the warranty period and we handle the repair or replacement.
The Element K22A (POS Plaza SKU TTETK22A003) is a 21.5 inch fanless Android 13 touch panel PC sold by POS Plaza at $1,359 including GST. It runs Android 13 with GMS under EDLA on a MediaTek MT8390 (i700) with Arm Mali-G57 MC3 graphics, 8GB of DDR4 or LPDDR4 memory and 64GB of eMMC storage. The display is a 21.5 inch TFT LCD at 1920 x 1080 with projected capacitive 10 point touch, 225 nits with the touch panel fitted, a 1000:1 contrast ratio, 178 degree viewing angles and a 7H hardness glass surface, in a 16.16mm slim bezel housing 37.9mm deep. Connectivity is Wi-Fi 802.11 a/b/g/n/ac/ax with Bluetooth 5.2 and 10/100/1000 LAN. Ports comprise 3 x USB-C 3.0, 2 x USB 3.0 Type A, 3 x built in USB 2.0 peripheral ports at 5V 0.5A and a Micro SD slot supporting SDHC 2.0; HDMI and audio are listed by Element as customisation options and are not standard. Audio is 2 x 2W speakers, mounting is VESA 100 x 100, and power is a 12V 90W external adaptor or Power over Ethernet, selectable. The housing is dark grey. It is built for kitchen video systems, self check in and self checkout, self ordering terminals and digital signage. Warranty is 3 Years Return to Base.
Specifying kitchen or kiosk screens? Call 1300 115 808 and we will work out PoE and mounting with you.
